1. (40 points) Refer to RC circuit below where switch S1 has been in position "b" for a long time. a. Determine V(t) for

Post by answerhappygod »

1 40 Points Refer To Rc Circuit Below Where Switch S1 Has Been In Position B For A Long Time A Determine V T For 1
1 40 Points Refer To Rc Circuit Below Where Switch S1 Has Been In Position B For A Long Time A Determine V T For 1 (23.21 KiB) Viewed 37 times

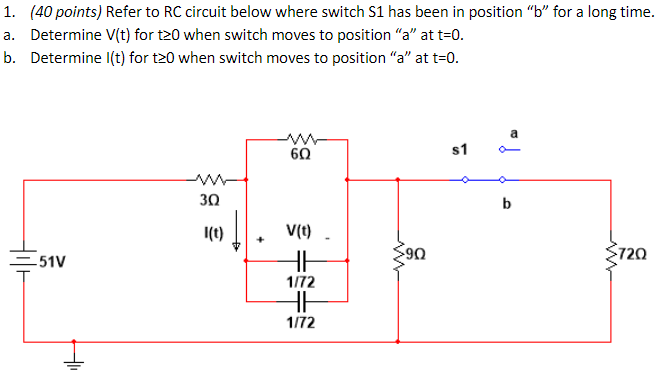

1. (40 points) Refer to RC circuit below where switch S1 has been in position "b" for a long time. a. Determine V(t) for t20 when switch moves to position "a" at t=0. b. Determine l(t) for t20 when switch moves to position "a" at t=0. =51V 30 l(t) 60 V(t) HH 1/72 HE 1/72 90 s1 b 720
