(a) How the electric field across an open circuited pn junction is created. What would cause the barrier potential in Si

Post by answerhappygod »

A How The Electric Field Across An Open Circuited Pn Junction Is Created What Would Cause The Barrier Potential In Si 1
A How The Electric Field Across An Open Circuited Pn Junction Is Created What Would Cause The Barrier Potential In Si 1 (57.44 KiB) Viewed 34 times

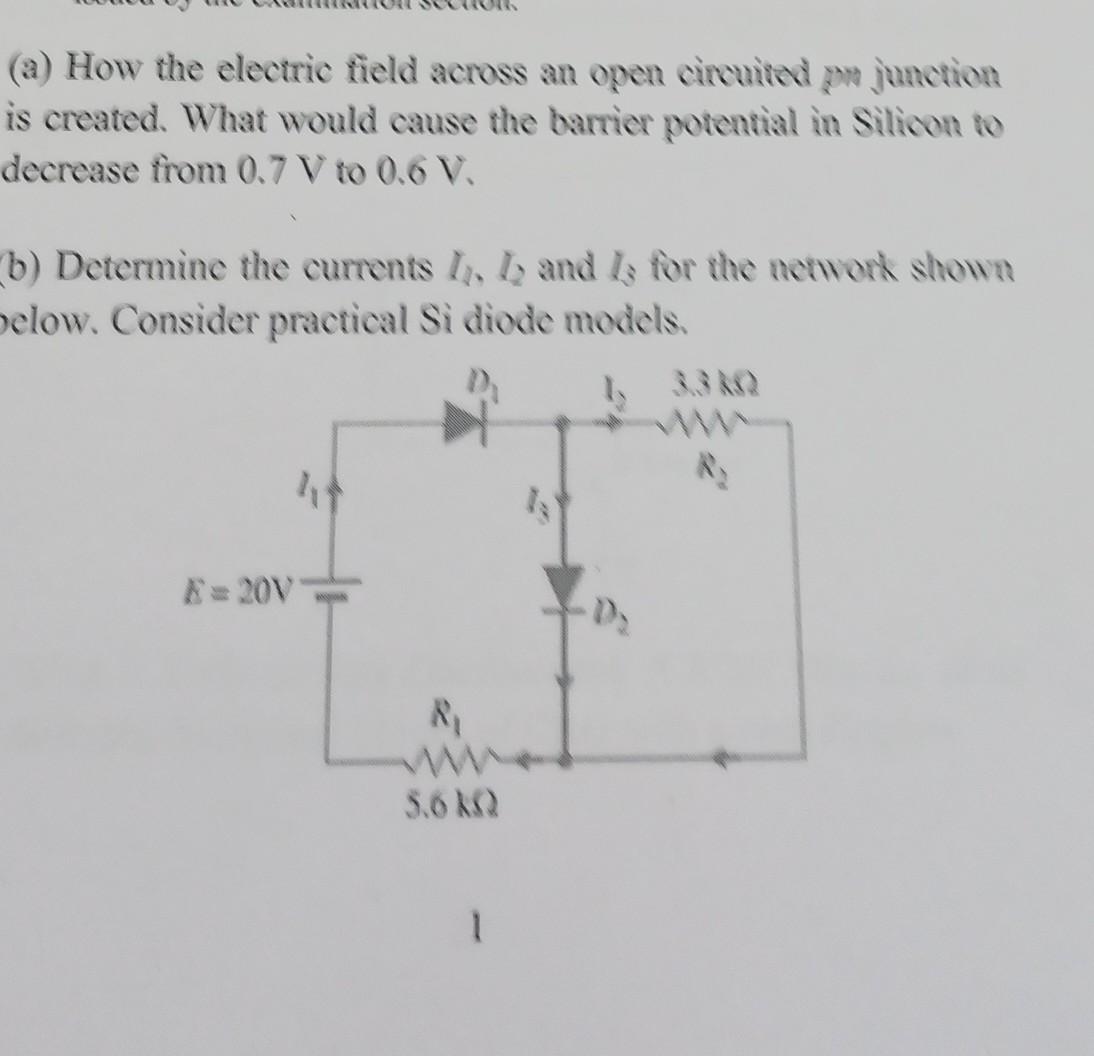

(a) How the electric field across an open circuited pn junction is created. What would cause the barrier potential in Silicon to decrease from 0.7 V to 0.6 V. (b) Determine the currents I, I and Is for the network shown below. Consider practical Si diode models. lit E=20VT R₁ 5.6 KM2 1 -D₂ R₂
