Module 6: Calculating charge densities in semiconductors Worksheet. Concept Map: Use of fundamental equilibrium equation

[answerhappygod]

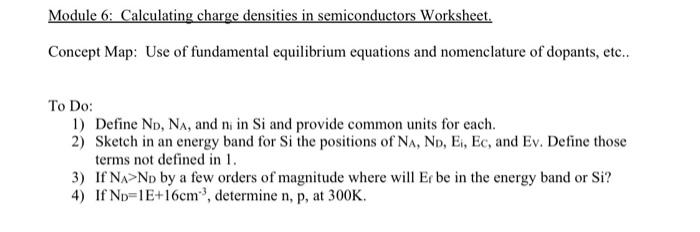

Module 6 Calculating Charge Densities In Semiconductors Worksheet Concept Map Use Of Fundamental Equilibrium Equation 1 (23.25 KiB) Viewed 62 times

Module 6: Calculating charge densities in semiconductors Worksheet. Concept Map: Use of fundamental equilibrium equations and nomenclature of dopants, etc.. To Do: 1) Define ND, NA, and ni in Si and provide common units for each. 2) Sketch in an energy band for Si the positions of NA, ND, Ei, Ec, and Ev. Define those terms not defined in 1. 3) If NA ND by a few orders of magnitude where will Er be in the energy band or Si? 4) If ND 1E+16cm³, determine n, p, at 300K.
