Determine the forces in members AC and BD of the inverted pyramidal truss with rectangular base. The forces are positive

Post by answerhappygod »

Determine The Forces In Members Ac And Bd Of The Inverted Pyramidal Truss With Rectangular Base The Forces Are Positive 1
Determine The Forces In Members Ac And Bd Of The Inverted Pyramidal Truss With Rectangular Base The Forces Are Positive 1 (21.81 KiB) Viewed 18 times

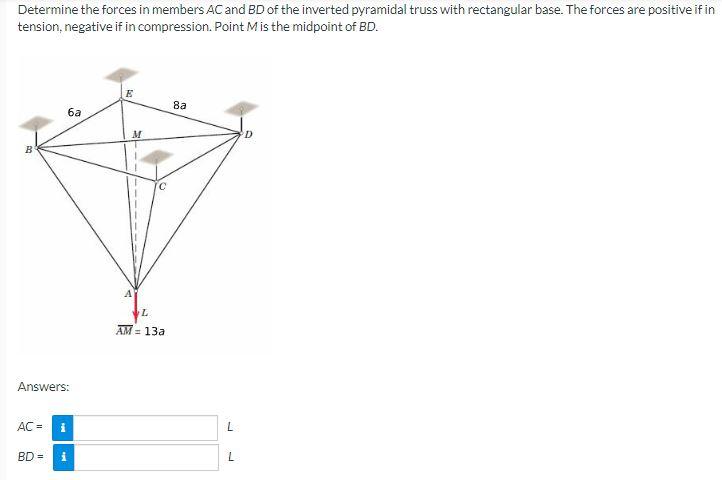

Determine the forces in members AC and BD of the inverted pyramidal truss with rectangular base. The forces are positive if in tension, negative if in compression. Point M is the midpoint of BD. B Answers: AC = BD = 6a i E M A L AM13a 8a L D
