A circular wire coil has 21 turns. The coil is shown in thefigure. An electric current of I = 15.9 A flows through thecoil.What is the magnitude of the magnetic field produced at the centerof the circular coil? Please, notice that the circle passes througha number of grid intersection points.
What is the magnitude of the magnetic moment of the coil?
The coil - while still carrying the same electric curent - isplaced in an external magnetic field of 1.47 T. What is the maximumvalue of the torque the coil will experience?

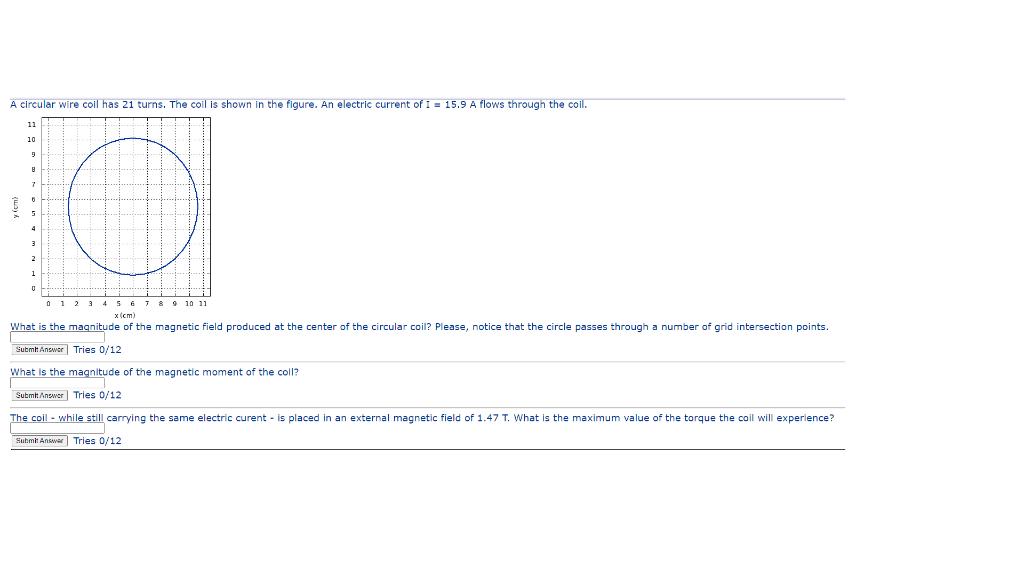

A Circular Wire Coil Has 21 Turns The Coil Is Shown In The Figure An Electric Current Of I 15 9 A Flows Through The 1 (43.27 KiB) Viewed 26 times
A circular wire coil has 21 turns. The coil is shown in the figure. An electric current of I = 15.9 A flows through the coil. 11 10 9 8 19 4 0 0 1 2 3 4 5 6 7 8 9 10 11 x (cm) What is the magnitude of the magnetic field produced at the center of the circular coil? Please, notice that the circle passes through a number of grid intersection points. Submit Answer Tries 0/12 What is the magnitude of the magnetic moment of the coll? Submit Answer Tries 0/12 The coil while still carrying the same electric curent is placed in an external magnetic field of 1.47 T. What is the maximum value of the torque the coil will experience? Submit Answer Tries 0/12
