Consider a transformer as pictured below. The transformer consists of two coils wound around a common ferromagnetic iron

[answerhappygod]

Consider A Transformer As Pictured Below The Transformer Consists Of Two Coils Wound Around A Common Ferromagnetic Iron 1 (79.99 KiB) Viewed 39 times

How to use the information and data of the first graph and thesecond graph to complete the function graph in the third graph, andfill in the last question of the third graph

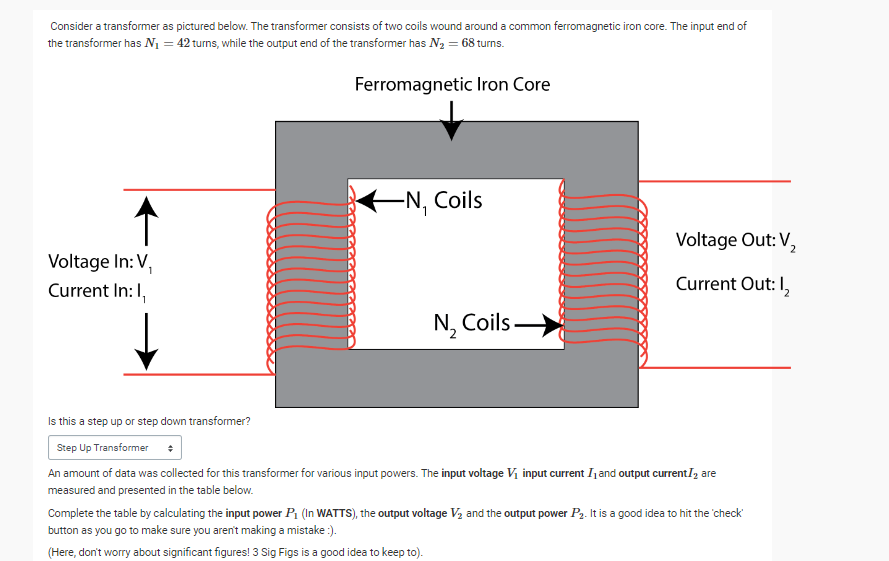

Consider a transformer as pictured below. The transformer consists of two coils wound around a common ferromagnetic iron core. The input end of the transformer has N₁ = 42 turns, while the output end of the transformer has N₂ = 68 turns. Ferromagnetic Iron Core Voltage In: V₁ Current In: I, -N₁ Coils N, N₂ Coils- Voltage Out: V₂ Current Out: 1₂ Is this a step up or step down transformer? Step Up Transformer An amount of data was collected for this transformer for various input powers. The input voltage V₁ input current I₁ and output current I₂ are measured and presented in the table below. Complete the table by calculating the input power P₁ (In WATTS), the output voltage V₂ and the output power P₂. It is a good idea to hit the 'check' button as you go to make sure you aren't making a mistake . (Here, don't worry about significant figures! 3 Sig Figs is a good idea to keep to).
Input Input Voltage Current (V) V₁ (mA) I₁ 2.6 5.6 6.5 13.3 15,2 19.4 457 559 878 1067 1620 2047 Input Power (W) P₁ 1.19 3.13 5.71 14.2 24.6 39.7 Your last answer was interpreted as follows: 1.19 Your last answer was interpreted as follows: 3.13 Your last answer was interpreted as follows: 5.71 Your last answer was interpreted as follows: 14.2 Your last answer was interpreted as follows: 24.6 Your last answer was interpreted as follows: 39.7 Output Voltage V₂ 7.16 14.4 17.3 35.1 40.2 53.3 Your last answer was interpreted as follows: 7.16 Your last answer was interpreted as follows: 14.4 Your last answer was interpreted as follows: 17.3 Your last answer was interpreted as follows: 35.1 Your last answer was interpreted as follows: 40.2 Your last answer was interpreted as follows: 53.3 Output Current (mA) I2₂ 166 217 330 404 612 745 Output Power (W) P₂ 1.19 3.13 5.71 14.19 24.62 39.71 Your last answer was interpreted as follows: 1.19 Your last answer was interpreted as follows: 3.13 Your last answer was interpreted as follows: 5.71 Your last answer was interpreted as follows: 14.19 Your last answer was interpreted as follows: 24.62 Your last answer was interpreted as follows: 39.71
Now, use the graphing tool below to find the efficiency of the transformer. You should plot power in on the x axis, and power out on the y axis. Switch x (thing you changed) 1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 19 20 Quick Graph 4.0 y (dependent variable) y (dependent variable) 100- 8.00- 4.00- 2.00- 0.00 1.00 2.00 3.00 4.00 6.00 Curve Fit x (thing you changed) x (thing you changed) Modify X Data Modify Y Data 8.00 0.00 10.0 Import Data Set Axes Override Equation Save Graph Paste the link for your graph here (be sure to right click on the 'copy link' button and paste the copied text into this box, don't worry if it says this is invalid!) What is the efficiency of your transformer?
