The axially loaded column given in the following image is a W14x53 with Ag = 10,064 mm², Ix = 225x108 mm4, ly-24x108 mm4

Post by answerhappygod »

The Axially Loaded Column Given In The Following Image Is A W14x53 With Ag 10 064 Mm Ix 225x108 Mm4 Ly 24x108 Mm4 1
The Axially Loaded Column Given In The Following Image Is A W14x53 With Ag 10 064 Mm Ix 225x108 Mm4 Ly 24x108 Mm4 1 (16.71 KiB) Viewed 22 times

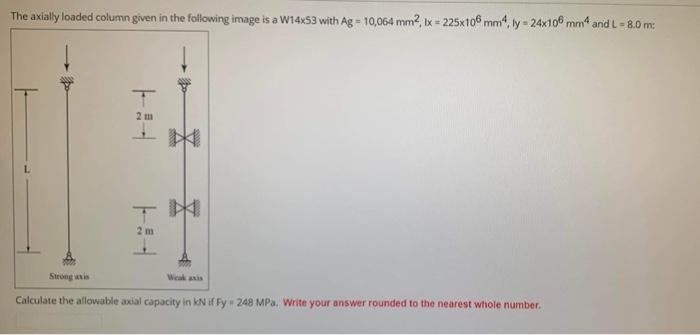

The axially loaded column given in the following image is a W14x53 with Ag = 10,064 mm², Ix = 225x108 mm4, ly-24x108 mm4 and L = 8.0 m: T 2 m TH 2 m Strong axis Calculate the allowable axial capacity in kN if Fy 248 MPa. Write your answer rounded to the nearest whole number. Weak axis
