2. Calculate the ultimate strength of the angle bar L150x90x8 using resistance factor of 0.75 and Fu=450MPa along fract

Post by answerhappygod »

2. Calculate the ultimate strength of the angle bar L150x90x8using resistance factor of 0.75 and Fu=450MPa along fractureline b-c. Holes are for 22mm diameter bolts. Answer in the nearestwhole number.
2 Calculate The Ultimate Strength Of The Angle Bar L150x90x8 Using Resistance Factor Of 0 75 And Fu 450mpa Along Fract 1
2 Calculate The Ultimate Strength Of The Angle Bar L150x90x8 Using Resistance Factor Of 0 75 And Fu 450mpa Along Fract 1 (1.1 MiB) Viewed 19 times

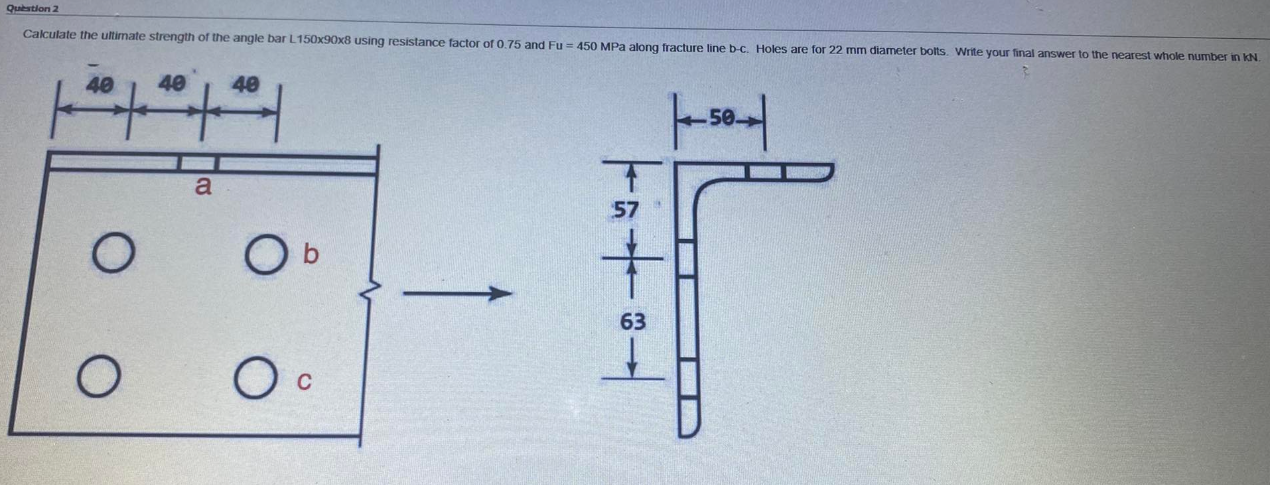

Question 2 Calculate the ultimate strength of the angle bar L150x90x8 using resistance factor of 0.75 and Fu = 450 MPa along fracture line b-c. Holes are for 22 mm diameter bolts. Write your final answer to the nearest whole number in KN. 40 O O 40 a 40 O b O +84 63 |50|
