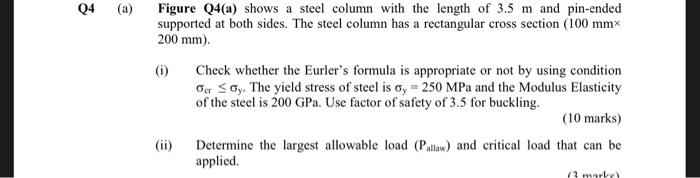

Q4 (a) Figure Q4(a) shows a steel column with the length of 3.5 m and pin-ended supported at both sides. The steel column has a rectangular cross section (100 mmx 200 mm). (i) (ii) Check whether the Eurler's formula is appropriate or not by using condition Ger Gy. The yield stress of steel is oy = 250 MPa and the Modulus Elasticity of the steel is 200 GPa. Use factor of safety of 3.5 for buckling. (10 marks) Determine the largest allowable load (Pallaw) and critical load that can be applied. (3 marke)

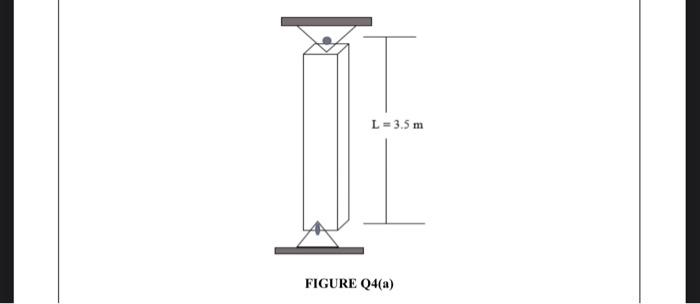

L = 3.5 m FIGURE Q4(a)
