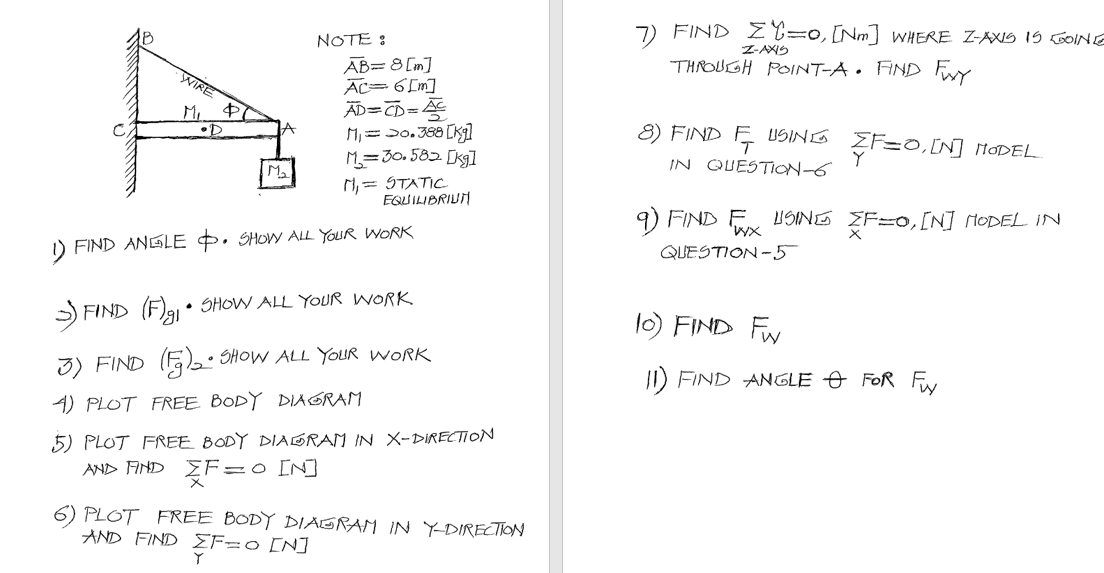

- Wire M Note Ab 8 M Ac6 M Ad Cd Ac M 0 388 Kg M 30 582 Kg M Static Equilibrium 1 Find Angle Show Al 1 (107.29 KiB) Viewed 30 times
WIRE & M₂ NOTE : AB=8[m] Ac6[m] AD=CD=AC M₁ = 0.388 [kg] M₁₂=30.582 [kg] M₁ = STATIC EQUILIBRIUM 1) FIND ANGLE • SHOW AL
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
WIRE & M₂ NOTE : AB=8[m] Ac6[m] AD=CD=AC M₁ = 0.388 [kg] M₁₂=30.582 [kg] M₁ = STATIC EQUILIBRIUM 1) FIND ANGLE • SHOW AL
WIRE & M₂ NOTE : AB=8[m] Ac6[m] AD=CD=AC M₁ = 0.388 [kg] M₁₂=30.582 [kg] M₁ = STATIC EQUILIBRIUM 1) FIND ANGLE • SHOW ALL YOUR WORK → FIND (F)g₁ • SHOW ALL YOUR WORK 3) FIND (F)₂· SHOW ALL YOUR WORK 4) PLOT FREE BODY DIAGRAM 5) PLOT FREE BODY DIAGRAM IN X-DIRECTION AND FIND IF = 0 [N] PLOT FREE BODY DIAGRAM IN Y-DIRECTION AND FIND ΣF=0 [N] Y 7) FIND T=0, [Nm] WHERE Z-AXIS IS GOINE Z-AXIS THROUGH POINT-A. FIND FWY 8) FIND F USING {F=0,[N] MODEL IN QUESTION-6 9) FIND EX USING [F=0, [N] MODEL IN 'WX QUESTION-5 FIND FW 11) FIND ANGLE FOR FY
