Problem 4 Determine The Following For The Truss Loaded In In Figure D Shown Below A The Vertical Deflection At D Usin 1 (35.17 KiB) Viewed 41 times
Subject: Structural Theory
Please make sure your answers are correct and please box the final answers. Also make sure you wrote it clearly. Thanks

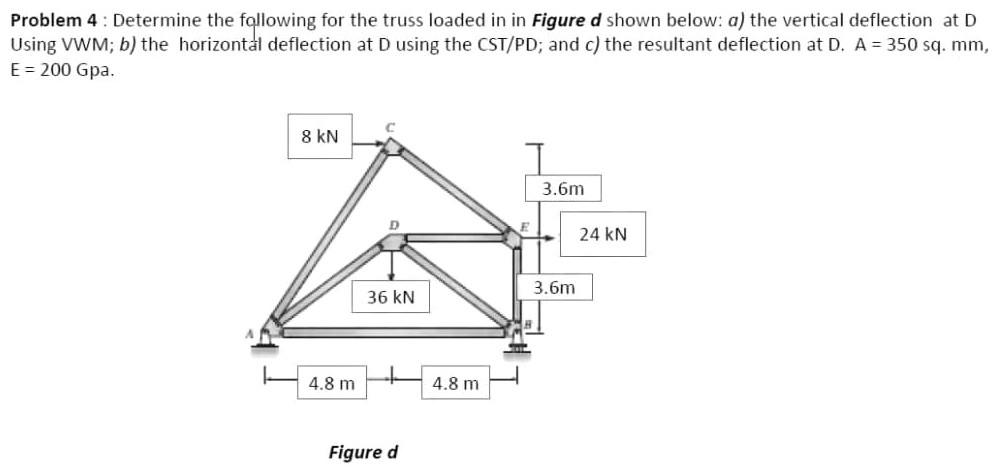

Problem 4: Determine the following for the truss loaded in in Figure d shown below: a) the vertical deflection at D Using VWM; b) the horizontal deflection at D using the CST/PD; and c) the resultant deflection at D. A = 350 sq. mm, E = 200 Gpa. 8 kN 4.8 m 36 kN Figure d 4.8 m 3.6m 3.6m 24 KN
