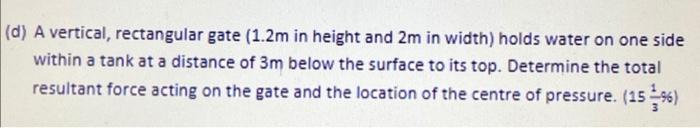

(d) A vertical, rectangular gate (1.2m in height and 2m in width) holds water on one side within a tank at a distance of 3m below the surface to its top. Determine the total resultant force acting on the gate and the location of the centre of pressure. (15⁹6)
