A concrete pile is to be installed in a layer of medium dense sand as shown in Figure Q3(a). The pile diameter is 300 mm

[answerhappygod]

A Concrete Pile Is To Be Installed In A Layer Of Medium Dense Sand As Shown In Figure Q3 A The Pile Diameter Is 300 Mm 1 (6.82 KiB) Viewed 66 times

A Concrete Pile Is To Be Installed In A Layer Of Medium Dense Sand As Shown In Figure Q3 A The Pile Diameter Is 300 Mm 2 (10.41 KiB) Viewed 66 times

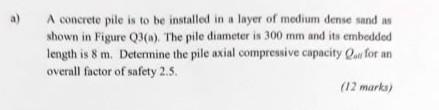

A concrete pile is to be installed in a layer of medium dense sand as shown in Figure Q3(a). The pile diameter is 300 mm and its embedded length is 8 m. Determine the pile axial compressive capacity for an overall factor of safety 2.5. (12 marks)

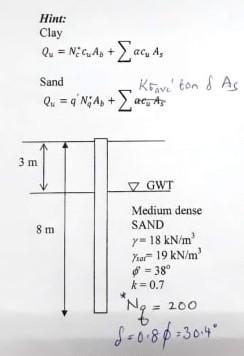

3 m Hint: Clay Qu = N²C₂A + [ac₁ A₂ Sand 8 m + Krave ton & As GWT Medium dense SAND y= 18 kN/m² Year 19 kN/m² = 38° k = 0.7 = 200 S=0.86=304*
