The bar AB shown rotates with a constant speed of 6 rad/s counterclockwise. Bar BCD weighs 10 lb and collar C weighs 2 l

Post by answerhappygod »

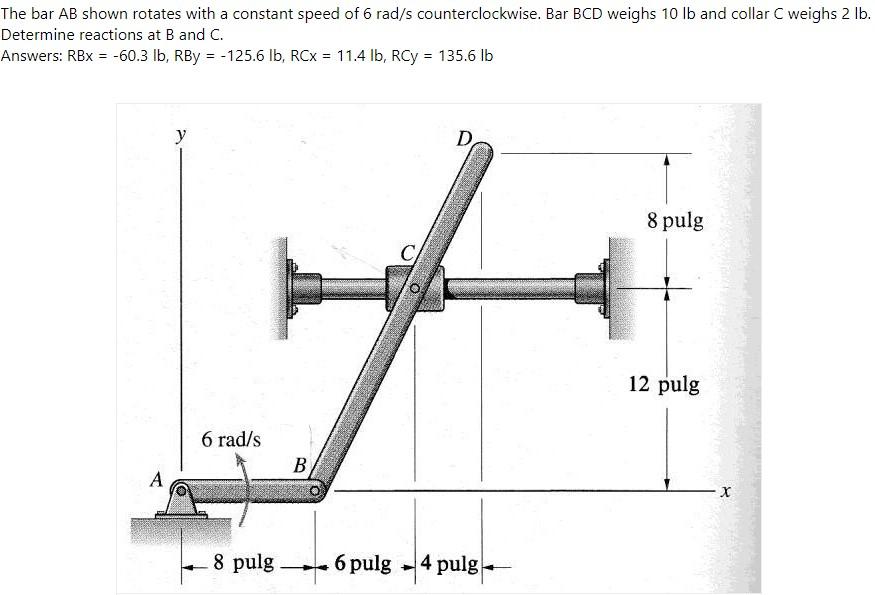

The Bar Ab Shown Rotates With A Constant Speed Of 6 Rad S Counterclockwise Bar Bcd Weighs 10 Lb And Collar C Weighs 2 L 1
The Bar Ab Shown Rotates With A Constant Speed Of 6 Rad S Counterclockwise Bar Bcd Weighs 10 Lb And Collar C Weighs 2 L 1 (51.63 KiB) Viewed 35 times
The bar AB shown rotates with a constant speed of 6 rad/s counterclockwise. Bar BCD weighs 10 lb and collar C weighs 2 lb. Determine reactions at B and C. Answers: RBx = -60.3 lb, RBy = -125.6 lb, RCx = 11.4 lb, RCy = 135.6 lb y 6 rad/s 8 pulg B D 6 pulg4 pulg 8 pulg 12 pulg X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
