Given a EH-200V DC source with a switching frequency of 1 kHz, calculate the duty ratio D(t) if we want to generate a si

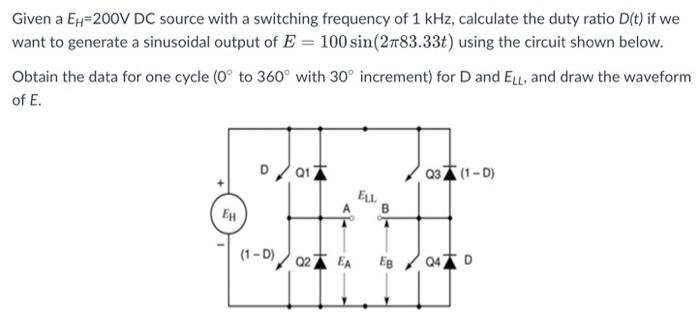

Given a EH-200V DC source with a switching frequency of 1 kHz, calculate the duty ratio D(t) if we want to generate a sinusoidal output of E = 100 sin(2783.33t) using the circuit shown below. Obtain the data for one cycle (0° to 360° with 30° increment) for D and ELL, and draw the waveform of E. EH D Q1 (1-D) 02 EA ELL Ев Q3 (1-D) 04 D
