Please provide a step by step solution to the
problem. Please explain how the problem is solved so I would understand how to solve it. Thank you
2. Solve Prob#7, Lecture Series #5. Also, solve for the actual generator current and corresponding powerfactor.
2. Solve Prob#7, Lecture Series #5. Also, solve for the actual generator current and corresponding power
factor.
Please Provide A Step By Step Solution To The Problem Please Explain How The Problem Is Solved So I Would Understand Ho 1 (23.86 KiB) Viewed 38 times

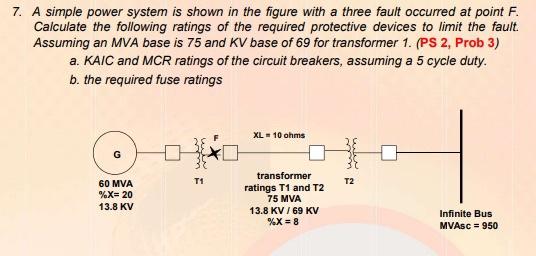

7. A simple power system is shown in the figure with a three fault occurred at point F. Calculate the following ratings of the required protective devices to limit the fault. Assuming an MVA base is 75 and KV base of 69 for transformer 1. (PS 2, Prob 3) a. KAIC and MCR ratings of the circuit breakers, assuming a 5 cycle duty. b. the required fuse ratings 60 MVA %X= 20 13.8 KV T1 XL = 10 ohms transformer ratings T1 and T2 75 MVA 13.8 KV/69 KV %X = 8 T2 Infinite Bus MVASc = 950
