Please provide a step by step solution to the
problem. Please explain how the problem is solved so I would understand how to solve it. Thank you
Solve Prob#6
Please Provide A Step By Step Solution To The Problem Please Explain How The Problem Is Solved So I Would Understand Ho 1 (27.11 KiB) Viewed 42 times

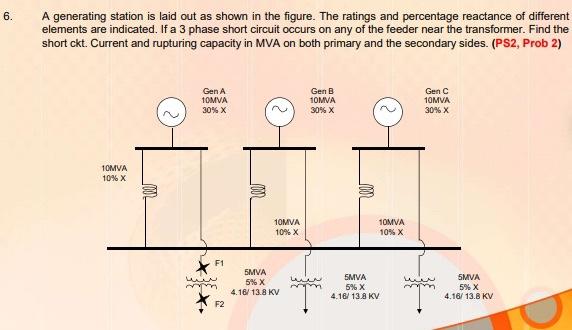

6. A generating station is laid out as shown in the figure. The ratings and percentage reactance of different elements are indicated. If a 3 phase short circuit occurs on any of the feeder near the transformer. Find the short ckt. Current and rupturing capacity in MVA on both primary and the secondary sides. (PS2, Prob 2) 10MVA 10% X டை Gen A 10MVA 30% X F1 www m F2 10MVA 10% X 5MVA 5% X 4.16/13.8 KV Gen B 10MVA 30% X 10MVA 10% X 5MVA 5% X 4.16/ 13.8 KV Gen C 10MVA 30% X 5MVA 5% X 4.16/ 13.8 KV www.
