Assume that each diode can be modeled as an ideal diode in series with a voltage source, having Vf = 0.7V,
The resistor has a value of RI = 10ohm
Check all statements that are true.
A )IfV1-2.3V and V2-2.3V, then Vo has a positive limit of 3 Volts and a negative limit of -9 Volts.
B )When any of the diodes are ON, the voltage across that diode is 0.7 V.
C )When Vin is in between the positive and negative limits ef Vout, Vo-Vin.
D )When R1 is replaced with & resistor with higher resistance, the Voltage Transfer Characteristics (VTC) curve
changes

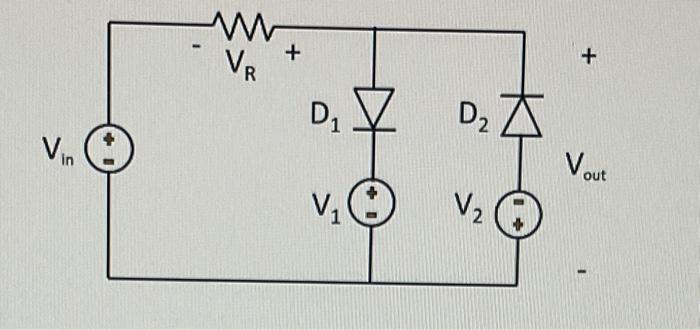

Assume That Each Diode Can Be Modeled As An Ideal Diode In Series With A Voltage Source Having Vf 0 7v The Resistor 1 (29.5 KiB) Viewed 45 times
Vin www VR + D₁ D₂ V₂0 V₂ + Vout
