A steel beam is loaded and supported as shown in the following figure. Determine: a) The bending normal stress at a poin

Post by answerhappygod »

A Steel Beam Is Loaded And Supported As Shown In The Following Figure Determine A The Bending Normal Stress At A Poin 1
A Steel Beam Is Loaded And Supported As Shown In The Following Figure Determine A The Bending Normal Stress At A Poin 1 (29.1 KiB) Viewed 39 times

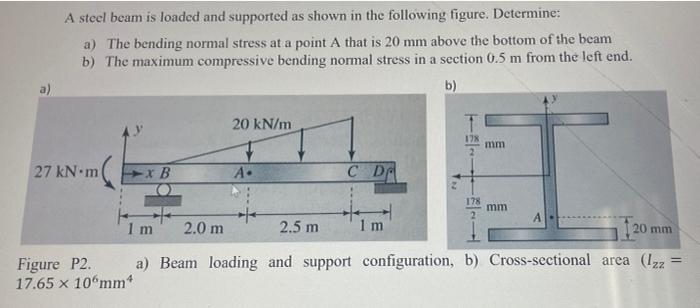

A steel beam is loaded and supported as shown in the following figure. Determine: a) The bending normal stress at a point A that is 20 mm above the bottom of the beam b) The maximum compressive bending normal stress in a section 0.5 m from the left end. b) 27 kN-m x B Figure P2. 17.65 x 10mm* 20 kN/m A. C D 2.5 m 178 1 m 178 20 mm 1 m 2.0 m a) Beam loading and support configuration, b) Cross-sectional area (Izz = mm mm A
