Q4. (a) Write down the Bernoulli's Equation and define each term in the equation. (b) (14 marks) (08 Marks) Determine th

[answerhappygod]

Q4 A Write Down The Bernoulli S Equation And Define Each Term In The Equation B 14 Marks 08 Marks Determine Th 1 (23.3 KiB) Viewed 29 times

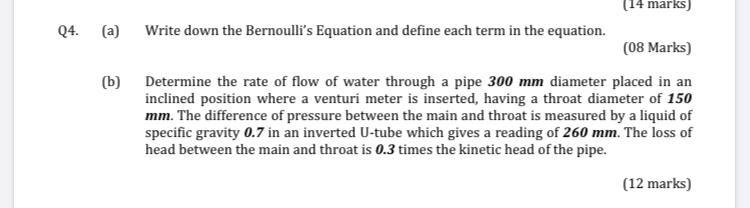

Q4. (a) Write down the Bernoulli's Equation and define each term in the equation. (b) (14 marks) (08 Marks) Determine the rate of flow of water through a pipe 300 mm diameter placed in an inclined position where a venturi meter is inserted, having a throat diameter of 150 mm. The difference of pressure between the main and throat is measured by a liquid of specific gravity 0.7 in an inverted U-tube which gives a reading of 260 mm. The loss of head between the main and throat is 0.3 times the kinetic head of the pipe. (12 marks)
