Q5. (i) (ii) Briefly explain the pitot tube mechanism in a fluid flow. (08 marks) Petrolium oil (specific gravity=0.9 an

Post by answerhappygod »

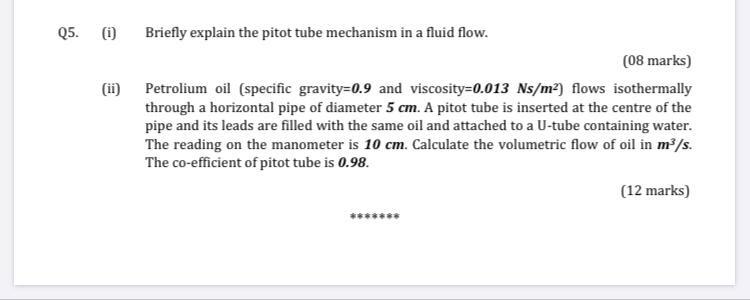

Q5 I Ii Briefly Explain The Pitot Tube Mechanism In A Fluid Flow 08 Marks Petrolium Oil Specific Gravity 0 9 An 1
Q5 I Ii Briefly Explain The Pitot Tube Mechanism In A Fluid Flow 08 Marks Petrolium Oil Specific Gravity 0 9 An 1 (25.35 KiB) Viewed 30 times
Q5. (i) (ii) Briefly explain the pitot tube mechanism in a fluid flow. (08 marks) Petrolium oil (specific gravity=0.9 and viscosity=0.013 Ns/m²) flows isothermally through a horizontal pipe of diameter 5 cm. A pitot tube is inserted at the centre of the pipe and its leads are filled with the same oil and attached to a U-tube containing water. The reading on the manometer is 10 cm. Calculate the volumetric flow of oil in m³/s. The co-efficient of pitot tube is 0.98. (12 marks)
