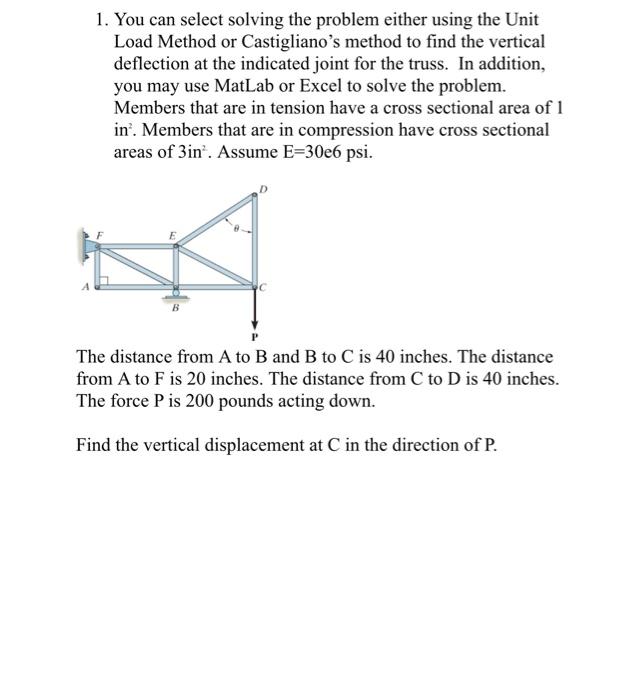

1. You can select solving the problem either using the Unit Load Method or Castigliano's method to find the vertical deflection at the indicated joint for the truss. In addition, you may use MatLab or Excel to solve the problem. Members that are in tension have a cross sectional area of 1 in. Members that are in compression have cross sectional areas of 3in. Assume E=30e6 psi. The distance from A to B and B to C is 40 inches. The distance from A to F is 20 inches. The distance from C to D is 40 inches. The force P is 200 pounds acting down. Find the vertical displacement at C in the direction of P.
