N E 275kv 0 1 P U 0 1 P U M D 0 05 P U 0 05 P U C 0 15 P U M 0 15 P U M 200 Mw P F 0 6 Lagging B 0 08 P U A 0 1 (38.77 KiB) Viewed 43 times
please i want answer as fast as can power operation system

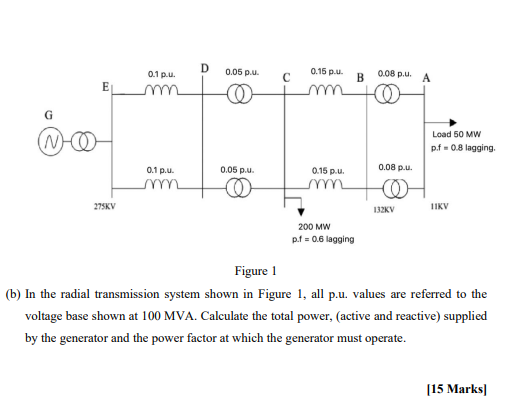

(N) E 275KV 0.1 p.u. 0.1 p.u. m D 0.05 p.u. 0.05 p.u. C 0.15 p.u. m 0.15 p.u. m 200 MW p.f = 0.6 lagging B 0.08 p.u. A 0.08 p.u. 132KV Load 50 MW p.f= 0.8 lagging. 11KV Figure 1 (b) In the radial transmission system shown in Figure 1, all p.u. values are referred to the voltage base shown at 100 MVA. Calculate the total power, (active and reactive) supplied by the generator and the power factor at which the generator must operate. [15 Marks]
