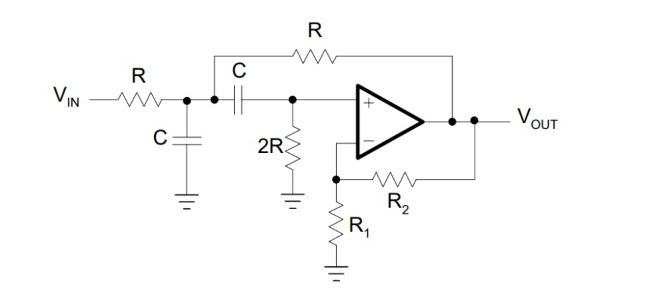

Place all the formulas and comment on the steps that lead to thesolution for each statement1-) Determine an expression for the circuit output (Vout) in termsof the componentsand the entrance.2-) Determine the type of filter: low pass, high pass, band pass orband reject. Justify.3-) Determine the implementation of the filter: "Multiple feedback"or "Sallen-Key". Justify.4-) Find the cutoff frequency, the filter gain and the qualityfactor in terms ofthe circuit components.

Place All The Formulas And Comment On The Steps That Lead To The Solution For Each Statement 1 Determine An Expression 1 (11.33 KiB) Viewed 34 times

VIN R www C C 2R R www ww R₂ R₁ VOUT
