2nd Order Filter. Design a circuit to provide the following amplitude response. a) Write H(s) and calculate numerical va

[answerhappygod]

2nd Order Filter Design A Circuit To Provide The Following Amplitude Response A Write H S And Calculate Numerical Va 1 (287.17 KiB) Viewed 32 times

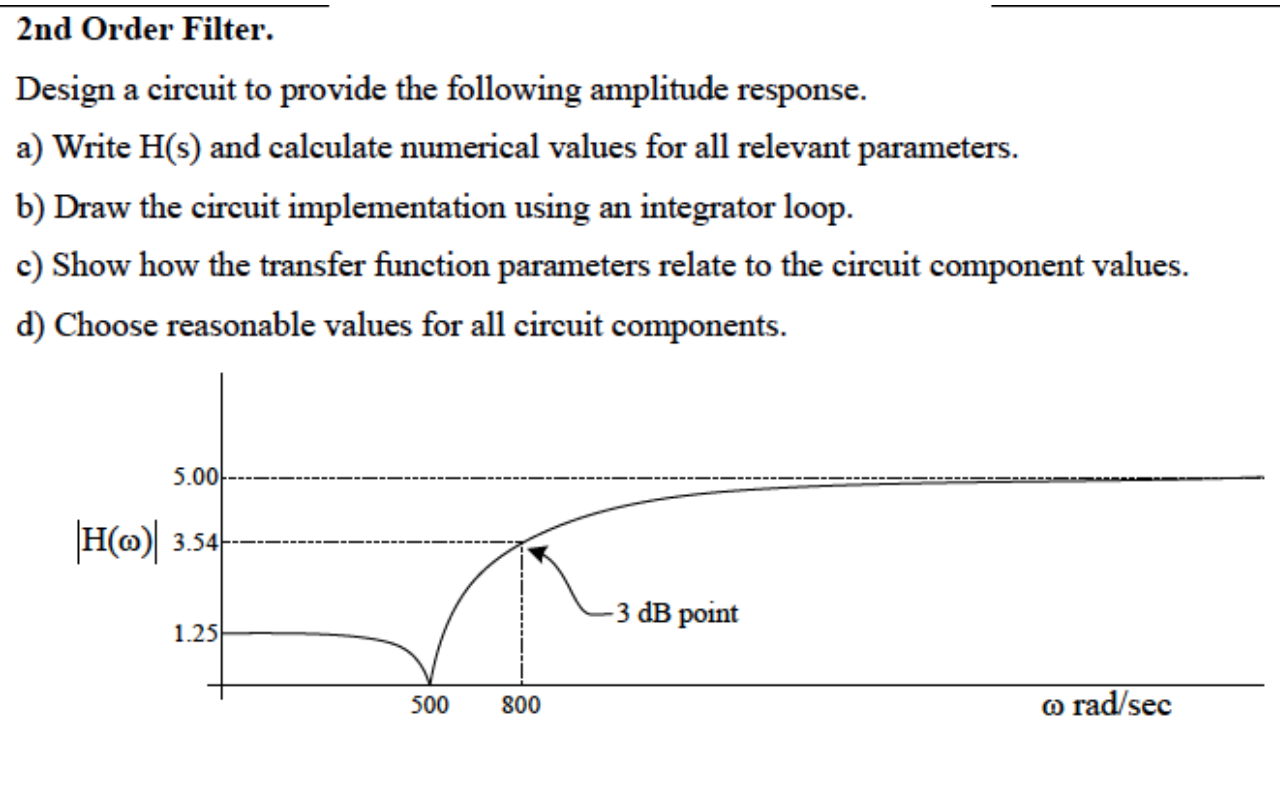

2nd Order Filter. Design a circuit to provide the following amplitude response. a) Write H(s) and calculate numerical values for all relevant parameters. b) Draw the circuit implementation using an integrator loop. c) Show how the transfer function parameters relate to the circuit component values. d) Choose reasonable values for all circuit components. 5.00 H(0) 3.54 1.25 500 800 -3 dB point o rad/sec
