Part 2: Inverting Op Amp Design this circuit and build it on your breadboard. Produce an output 10x larger than the inpu

[answerhappygod]

Part 2 Inverting Op Amp Design This Circuit And Build It On Your Breadboard Produce An Output 10x Larger Than The Inpu 1 (62.04 KiB) Viewed 28 times

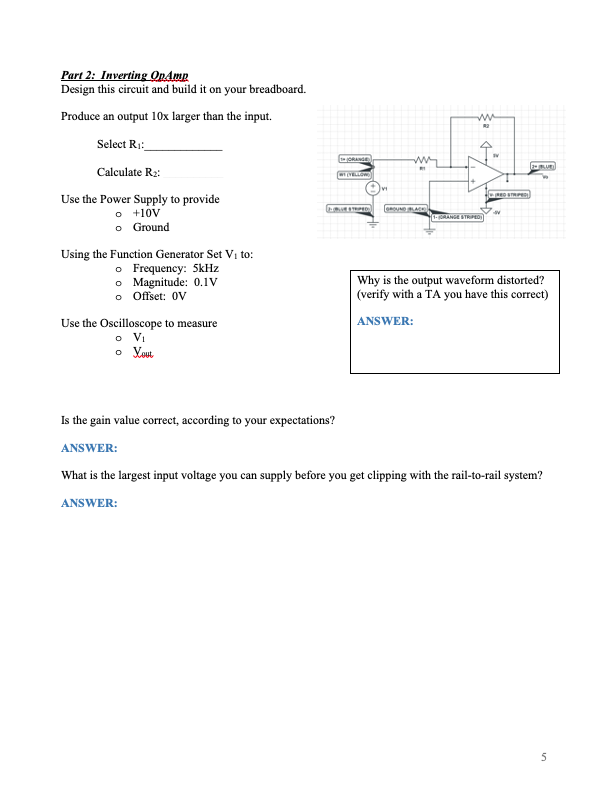

Part 2: Inverting Op Amp Design this circuit and build it on your breadboard. Produce an output 10x larger than the input. Select R₁: Calculate R₂: Use the Power Supply to provide o +10V o Ground Using the Function Generator Set V₁ to: o Frequency: 5kHz o Magnitude: 0.1V o Offset: OV Use the Oscilloscope to measure o V₁ o Yout JORANGE) [WE(YELLOW) [ABLE STRIPED GROUND (BLACK) ww 1-ORANGE STRIPED 4 STAPEN -AV [URL] Why is the output waveform distorted? (verify with a TA you have this correct) ANSWER: Is the gain value correct, according to your expectations? ANSWER: What is the largest input voltage you can supply before you get clipping with the rail-to-rail system? ANSWER: 5
