Problem 10.044 - Find the resistor current using phasor-based analysis. Consider the following figure, A cos (1001-20°)

Post by answerhappygod »

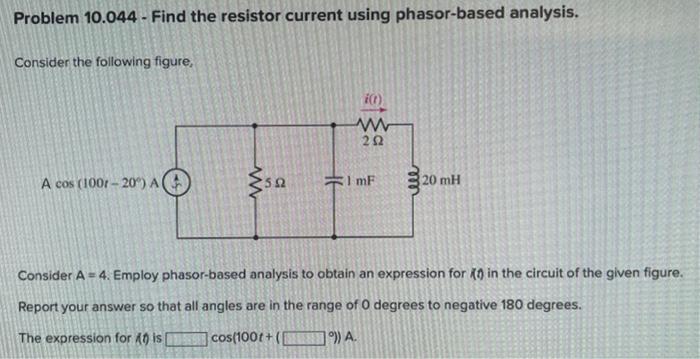

Problem 10 044 Find The Resistor Current Using Phasor Based Analysis Consider The Following Figure A Cos 1001 20 1
Problem 10 044 Find The Resistor Current Using Phasor Based Analysis Consider The Following Figure A Cos 1001 20 1 (43 KiB) Viewed 17 times
Problem 10.044 - Find the resistor current using phasor-based analysis. Consider the following figure, A cos (1001-20°) A( 522 i(t) ww 202 ImF m ele 20 mH Consider A=4. Employ phasor-based analysis to obtain an expression for in the circuit of the given figure. Report your answer so that all angles are in the range of 0 degrees to negative 180 degrees. The expression for At) is cos(100t+(°)) A.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
