*27. Write the nodal equations for the network of Fig. 18.85 LD, and find the voltage across the 2 kΩ resistor. ΙΚΩ Μ 12

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

*27. Write the nodal equations for the network of Fig. 18.85 LD, and find the voltage across the 2 kΩ resistor. ΙΚΩ Μ 12

Post by answerhappygod »

1
1 (18.61 KiB) Viewed 16 times

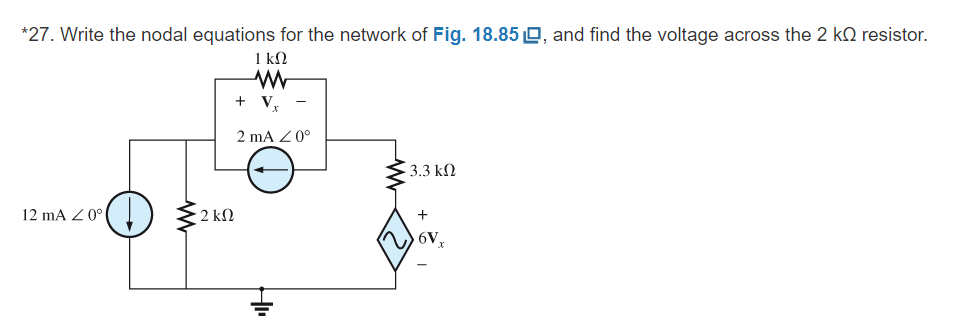

*27. Write the nodal equations for the network of Fig. 18.85 LD, and find the voltage across the 2 kΩ resistor. ΙΚΩ Μ 12 mA < 0° 2 ΚΩ + V. 2 mA < 0° • 3.3 ΚΩ 6V,
