- For The Circuit Below Find The Ideal V In Diode And I When V 9v And V L In S S 10v Assume Op Amp Is Ideal 1 (68.77 KiB) Viewed 27 times
● ● For the circuit below, find the ideal V₁, in diode and i when V = 9V and V L' 'in' S S = 10V. Assume Op-Amp is ideal
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
● ● For the circuit below, find the ideal V₁, in diode and i when V = 9V and V L' 'in' S S = 10V. Assume Op-Amp is ideal

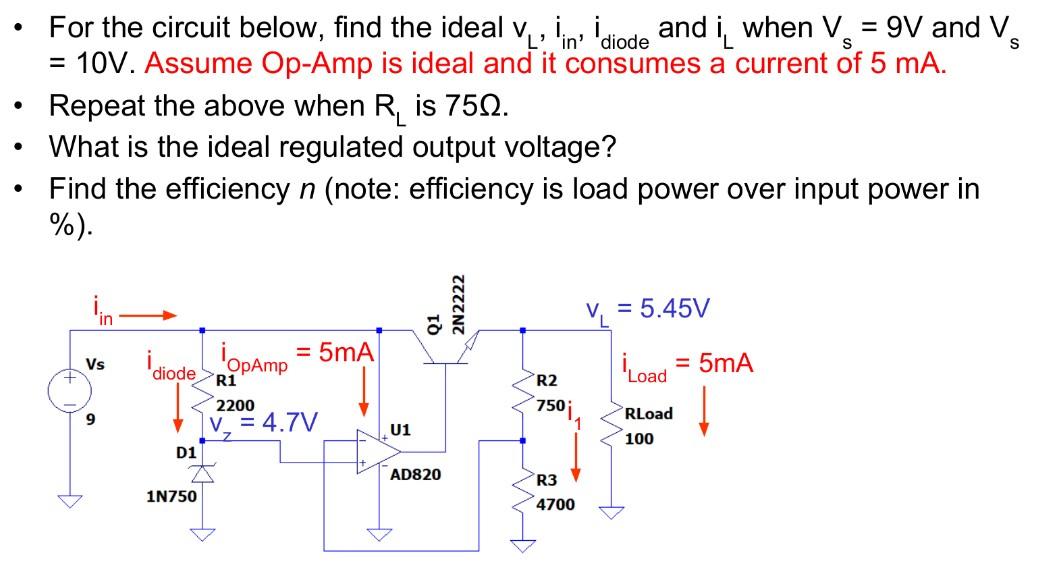

● ● For the circuit below, find the ideal V₁, in diode and i when V = 9V and V L' 'in' S S = 10V. Assume Op-Amp is ideal and it consumes a current of 5 mA. Repeat the above when R₁ is 750. What is the ideal regulated output voltage? Find the efficiency n (note: efficiency is load power over input power in %). in Vs 9 idiode Op Amp R1 = 5mA 2200 ▼ |V₂ = 4.7V D1 1N750 U1 2N2222 Q1 AD820 R2 750₁ R3 4700 V₁ = 5.45V Load RLoad 100 = 5mA ↓
