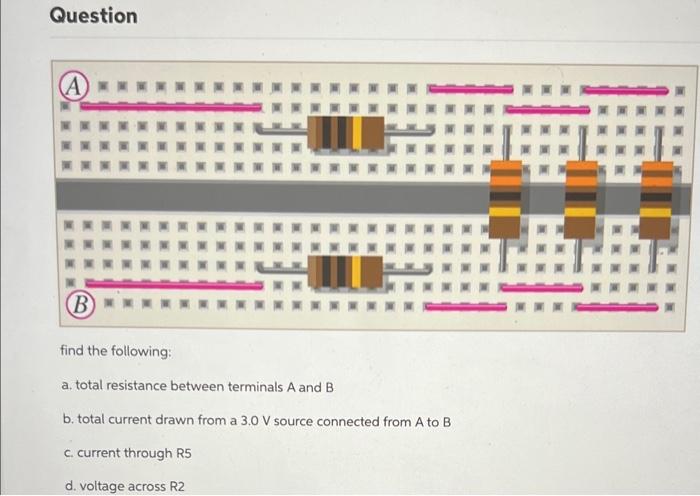

Question (A) B find the following: a. total resistance between terminals A and B b. total current drawn from a 3.0 V source connected from A to B c. current through R5 d. voltage across R2 # din

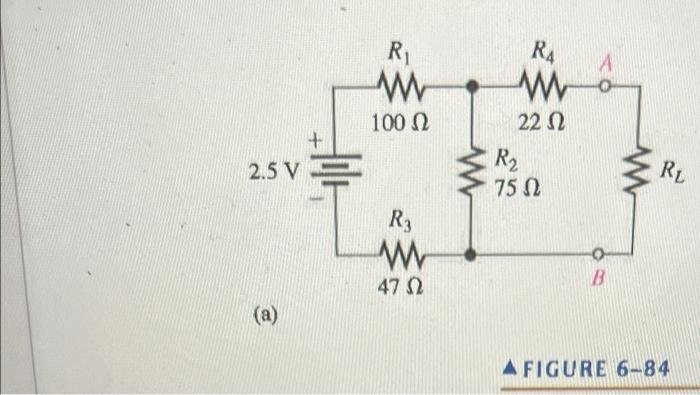

32. Determine the value of Rz in Figure 6-84(a) for which RL dissipates maximum power. Th
+ 2.5 V Ξ (a) R₁ Μ 100 Ω R3 Μ 47 Ω RA Μ 22 Ω R₂ 75 Ω Ο B Μ RL AFIGURE 6-84
