The Circuit Pictured Above Has Been Sitting With The Switch Sw1 Closed For A Long Time At A Time T 0 The Switch Op 1 (87.18 KiB) Viewed 23 times

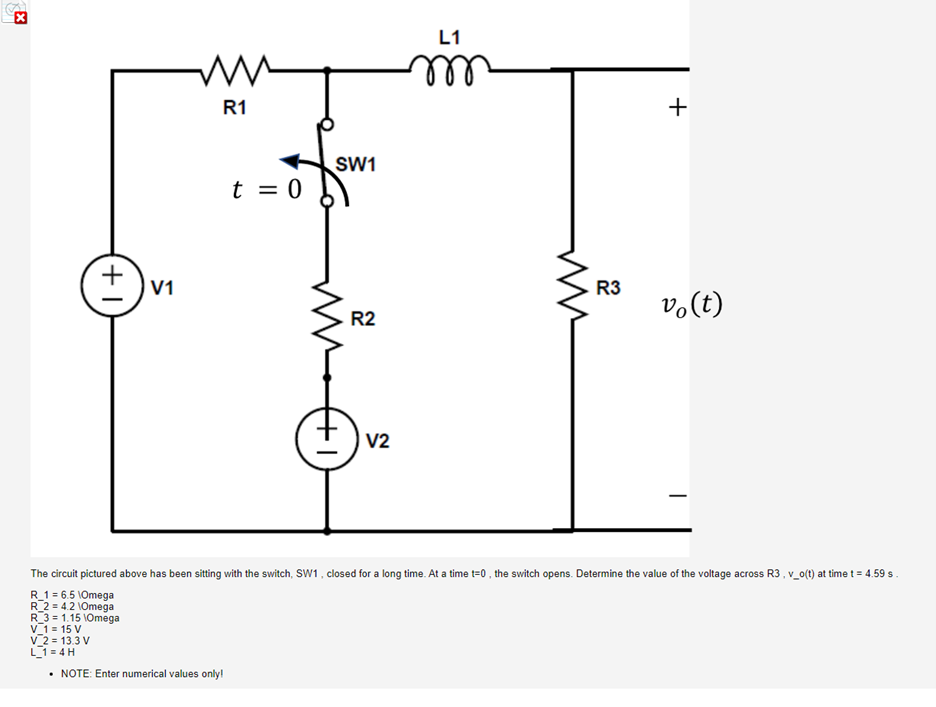

The circuit pictured above has been sitting with the switch, SW1, closed for a long time. At a time t=0 , the switch opens.Determine the value of the voltage across R3 , v_o(t) at time t =4.59 s .
e X +1 V1 R 3= 1.15 \Omega V 1 = 15 V V_2= 13.3 V L_1=4H R1 t = 0 • NOTE: Enter numerical values only! SW1 HI R2 V2 L1 m m R3 + The circuit pictured above has been sitting with the switch, SW1, closed for a long time. At a time t=0, the switch opens. Determine the value of the voltage across R3, v_o(t) at time t = 4.59 s. R_1 = 6.5 \Omega R_2= 4.2 \Omega vo(t)
