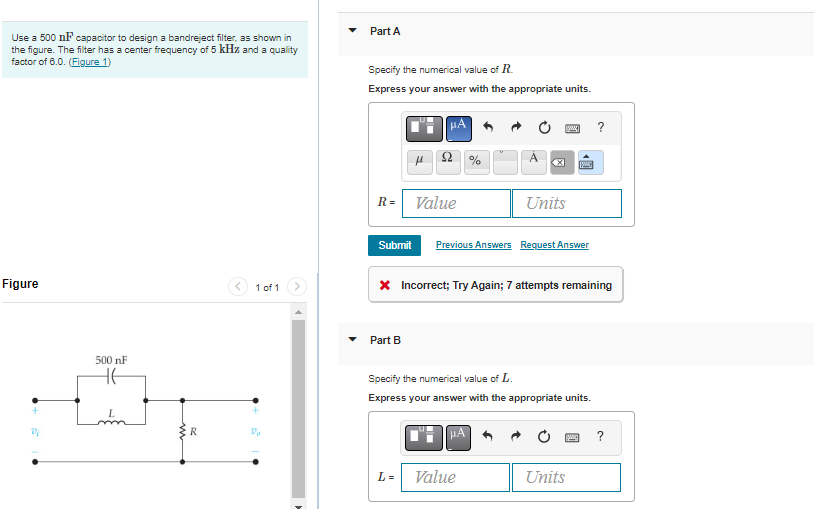

Use A 500 Nf Capacitor To Design A Bandreject Filter As Shown In The Figure The Filter Has A Center Frequency Of 5 Khz 1 (34.57 KiB) Viewed 26 times
Use a 500 nF capacitor to design a bandreject filter, as shown in the figure. The filter has a center frequency of 5 kHz and a quality factor of 6.0. (Figure 1) Figure 21 500 nF HE 0, R 1 of 1 Part A Specify the numerical value of R. Express your answer with the appropriate units. R= Submit Part B Ω μA L= Value % * Incorrect; Try Again; 7 attempts remaining www. ? Previous Answers Request Answer μA Units Specify the numerical value of L. Express your answer with the appropriate units. Value MID ? Units
Part C Calculate the lower corner, or cutoff, frequency. Express your answer with the appropriate units. HA fa= Value Submit Request Answer Part D Calculate the upper corner, or cutoff, frequency. Express your answer with the appropriate units. fa= Value Units Submit Request Answer Units Sw ? ?
Part E Calculate the filter bandwidth. Express your answer with the appropriate units. μA B= Value Submit Request Answer Units ?
