The parameter no represents the last two digits of your student number for all of the questions. Q1. (30 points) Conside

[answerhappygod]

The Parameter No Represents The Last Two Digits Of Your Student Number For All Of The Questions Q1 30 Points Conside 1 (28.72 KiB) Viewed 21 times

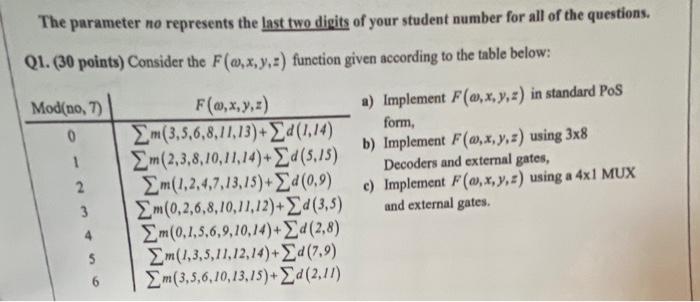

The parameter no represents the last two digits of your student number for all of the questions. Q1. (30 points) Consider the F(@, x, y, z) function given according to the table below: a) Implement F(a,x,y,z) in standard Pos form, b) Implement F(a,x,y,z) using 3x8 Decoders and external gates, c) Implement F(@, x, y, z) using a 4x1 MUX and external gates. Mod(no, 7) 0 1 2 F(@, x, y, z) Σω(3,5,6,8,11,13)+ Σα(1,14) Em (2,3,8,10,11,14)+ Ed(5.15) Σm(1,2,4,7,13,15) + Σα(0,9) Σ»(0,2,6,8,10,11,12)+ Σα(3,5) Em (0,1,5,6,9,10,14)+Σd (2,8) Em(1,3,5,11,12,14)+ Σd (7.9) Em (3,5,6,10,13,15)+ Ed(2,11)
