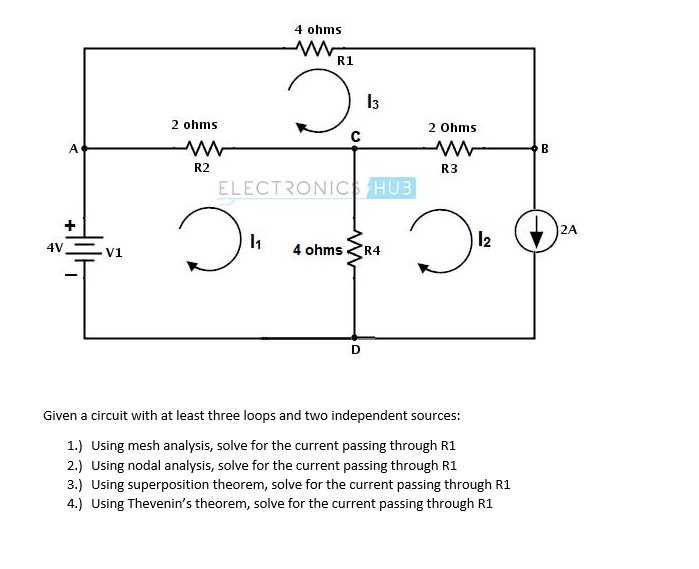

4V >> A T V1 2 ohms www R2 D 4 ohms. www R1 ə 1₁ C ELECTRONICS HUB 13 4 ohms R4 D 2 Ohms www R3 12 Given a circuit with at least three loops and two independent sources: 1.) Using mesh analysis, solve for the current passing through R1 2.) Using nodal analysis, solve for the current passing through R1 3.) Using superposition theorem, solve for the current passing through R1 4.) Using Thevenin's theorem, solve for the current passing through R1 B 2A
