4. For the circuit shown in Fig. Q4: (i) (ii) € (vi) compute the value of C in ohm. compute the total admittance in pola

[answerhappygod]

4 For The Circuit Shown In Fig Q4 I Ii Vi Compute The Value Of C In Ohm Compute The Total Admittance In Pola 1 (33.7 KiB) Viewed 52 times

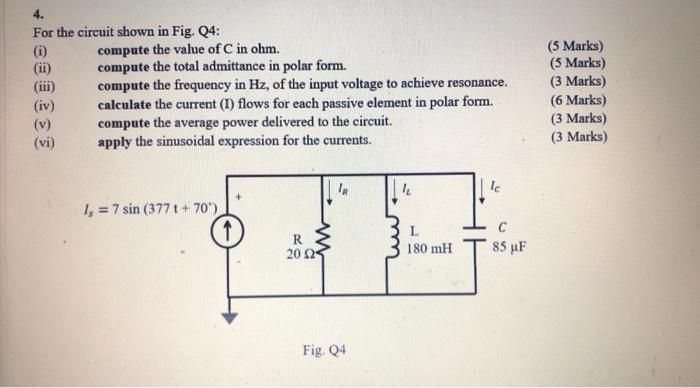

4. For the circuit shown in Fig. Q4: (i) (ii) € (vi) compute the value of C in ohm. compute the total admittance in polar form. compute the frequency in Hz, of the input voltage to achieve resonance. calculate the current (I) flows for each passive element in polar form. compute the average power delivered to the circuit. apply the sinusoidal expression for the currents. 1, = 7 sin (377 t+70) R 20 2 Fig. Q4 IL L 180 mH "J' 85 µF (5 Marks) (5 Marks) (3 Marks) (6 Marks) (3 Marks) (3 Marks)
