Q.1 An initial stress element is shown in Figure Q.1 below. The magnitude and direction of the stresses are also indicat

[answerhappygod]

Q 1 An Initial Stress Element Is Shown In Figure Q 1 Below The Magnitude And Direction Of The Stresses Are Also Indicat 1 (27.37 KiB) Viewed 33 times

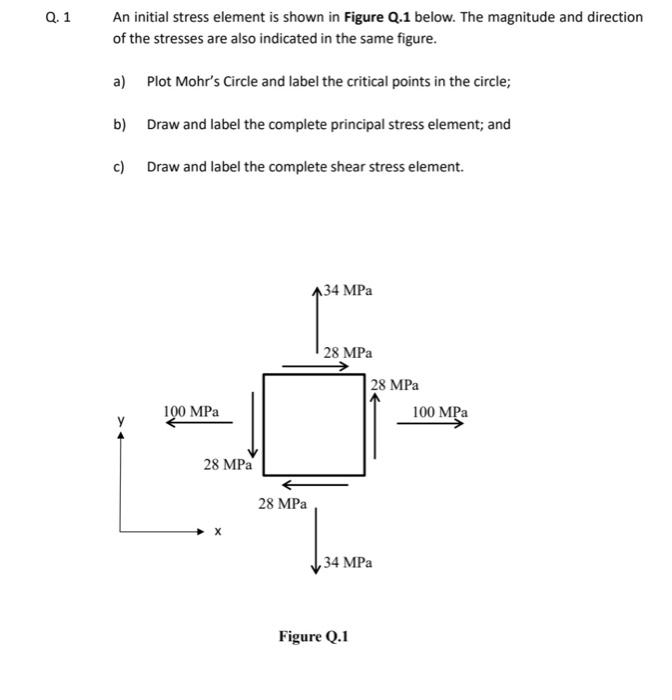

Q.1 An initial stress element is shown in Figure Q.1 below. The magnitude and direction of the stresses are also indicated in the same figure. a) Plot Mohr's Circle and label the critical points in the circle; Draw and label the complete principal stress element; and b) c) Draw and label the complete shear stress element. 100 MPa 28 MPa 28 MPa 34 MPa 28 MPa 28 MPa 34 MPa Figure Q.1 100 MPa
