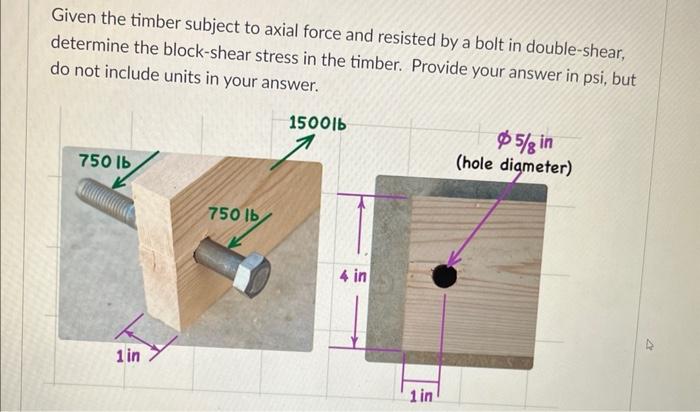

Given the timber subject to axial force and resisted by a bolt in double-shear, determine the block-shear stress in the timber. Provide your answer in psi, but do not include units in your answer. 750 lb 1in 750 lb 1500lb 4 in 1 in 5/8 in (hole diameter)

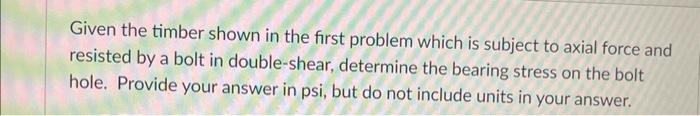

Given the timber shown in the first problem which is subject to axial force and resisted by a bolt in double-shear, determine the bearing stress on the bolt hole. Provide your answer in psi, but do not include units in your answer.
