The web has a width of 350 mm and the slab thickness is 100 mm. The beam has a span of 16.5 feet and spaced at 6.5 feet

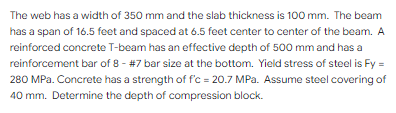

The web has a width of 350 mm and the slab thickness is 100 mm. The beam has a span of 16.5 feet and spaced at 6.5 feet center to center of the beam. A reinforced concrete T-beam has an effective depth of 500 mm and has a reinforcement bar of 8 - #7 bar size at the bottom. Yield stress of steel is Fy= 280 MPa. Concrete has a strength of f'c = 20.7 MPa. Assume steel covering of 40 mm. Determine the depth of compression block.
