Select and answer ONE QUESTION ONLY from Question #6, #7 or #8. 08. For the structure shown below, compute the reactions

Post by answerhappygod »

Select And Answer One Question Only From Question 6 7 Or 8 08 For The Structure Shown Below Compute The Reactions 1
Select And Answer One Question Only From Question 6 7 Or 8 08 For The Structure Shown Below Compute The Reactions 1 (67.15 KiB) Viewed 30 times

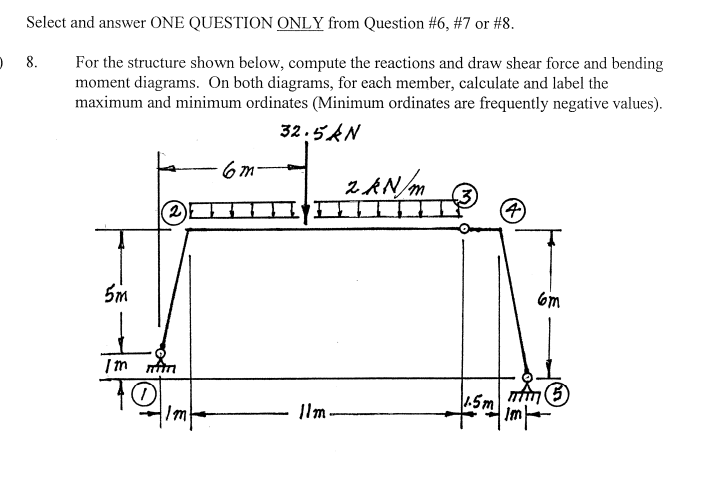

Select and answer ONE QUESTION ONLY from Question #6, #7 or #8. 08. For the structure shown below, compute the reactions and draw shear force and bending moment diagrams. On both diagrams, for each member, calculate and label the maximum and minimum ordinates (Minimum ordinates are frequently negative values). 32.5kN 5m 2 Imm 10 Im -6m- Ilm. z kN/m 1.5m (4) 6m nfmm (5) Im
