(a) Replace the one couple and three forces by an equivalent force-couple system at point 4. A diagram clearly showing t

[answerhappygod]

A Replace The One Couple And Three Forces By An Equivalent Force Couple System At Point 4 A Diagram Clearly Showing T 1 (77.18 KiB) Viewed 32 times

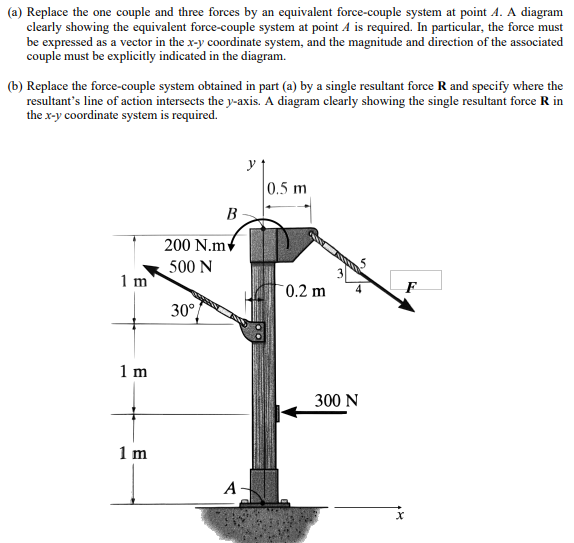

(a) Replace the one couple and three forces by an equivalent force-couple system at point 4. A diagram clearly showing the equivalent force-couple system at point A is required. In particular, the force must be expressed as a vector in the x-y coordinate system, and the magnitude and direction of the associated couple must be explicitly indicated in the diagram. (b) Replace the force-couple system obtained in part (a) by a single resultant force R and specify where the resultant's line of action intersects the y-axis. A diagram clearly showing the single resultant force R in the x-y coordinate system is required. 1 m 1 m 1 m B 200 N.m 500 N 30° A- 0.5 m 0.2 m 300 N F
