764.79 2, The vertical member has a modulus of elasticity of 120 GPa and may be treated as a long column with rounded-ro

[answerhappygod]

764 79 2 The Vertical Member Has A Modulus Of Elasticity Of 120 Gpa And May Be Treated As A Long Column With Rounded Ro 1 (18.76 KiB) Viewed 41 times

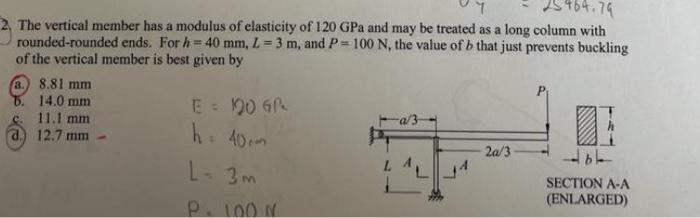

764.79 2, The vertical member has a modulus of elasticity of 120 GPa and may be treated as a long column with rounded-rounded ends. For h= 40 mm, L= 3 m, and P= 100 N, the value of b that just prevents buckling of the vertical member is best given by 8.81 mm 14.0 mm 11.1 mm d) 12.7 mm 8. E = 100 GR h = 40m L = 3m P. 100 M 2a/3 dol SECTION A-A (ENLARGED)
