A Question 3 (1 point) Retake question Listen Q3. The compound beam is pin-supported at A, pin-connected at C, and suppo

[answerhappygod]

A Question 3 1 Point Retake Question Listen Q3 The Compound Beam Is Pin Supported At A Pin Connected At C And Suppo 1 (59.87 KiB) Viewed 36 times

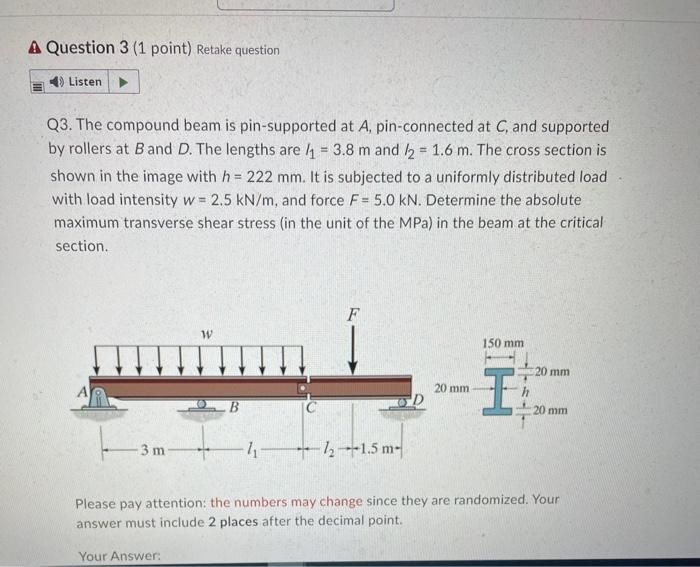

A Question 3 (1 point) Retake question Listen Q3. The compound beam is pin-supported at A, pin-connected at C, and supported by rollers at B and D. The lengths are ₁ = 3.8 m and /2 = 1.6 m. The cross section is shown in the image with h = 222 mm. It is subjected to a uniformly distributed load with load intensity w= 2.5 kN/m, and force F= 5.0 kN. Determine the absolute maximum transverse shear stress (in the unit of the MPa) in the beam at the critical section. 3 m W - В -4- F 1.5 m- D 20 mm- 150 mm I 20 mm 20 mm Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
