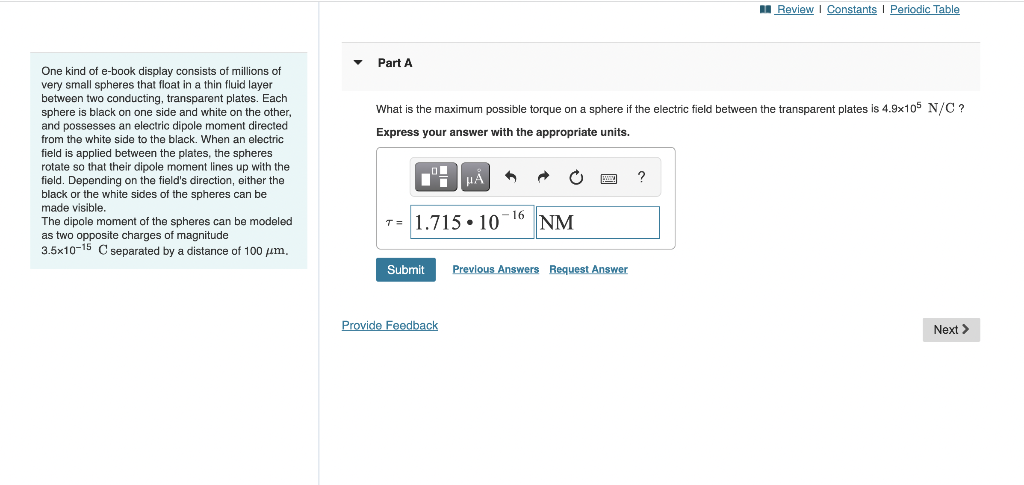

One kind of e-book display consists of millions of very small spheres that float in a thin fluid layer between two conducting, transparent plates. Each sphere is black on one side and white on the other, and possesses an electric dipole moment directed from the white side to the black. When an electric field is applied between the plates, the spheres rotate so that their dipole moment lines up with the field. Depending on the field's direction, either the black or the white sides of the spheres can be made visible. The dipole moment of the spheres can be modeled as two opposite charges of magnitude 3.5x10-15 C separated by a distance of 100 μm. Part A What is the maximum possible torque on a sphere if the electric field between the transparent plates is 4.9x105 N/C ? Express your answer with the appropriate units. T= 1.715 107 Submit Provide Feedback 16 NM Previous Answers Request Answer Review | Constants | Periodic Table ? Next >
