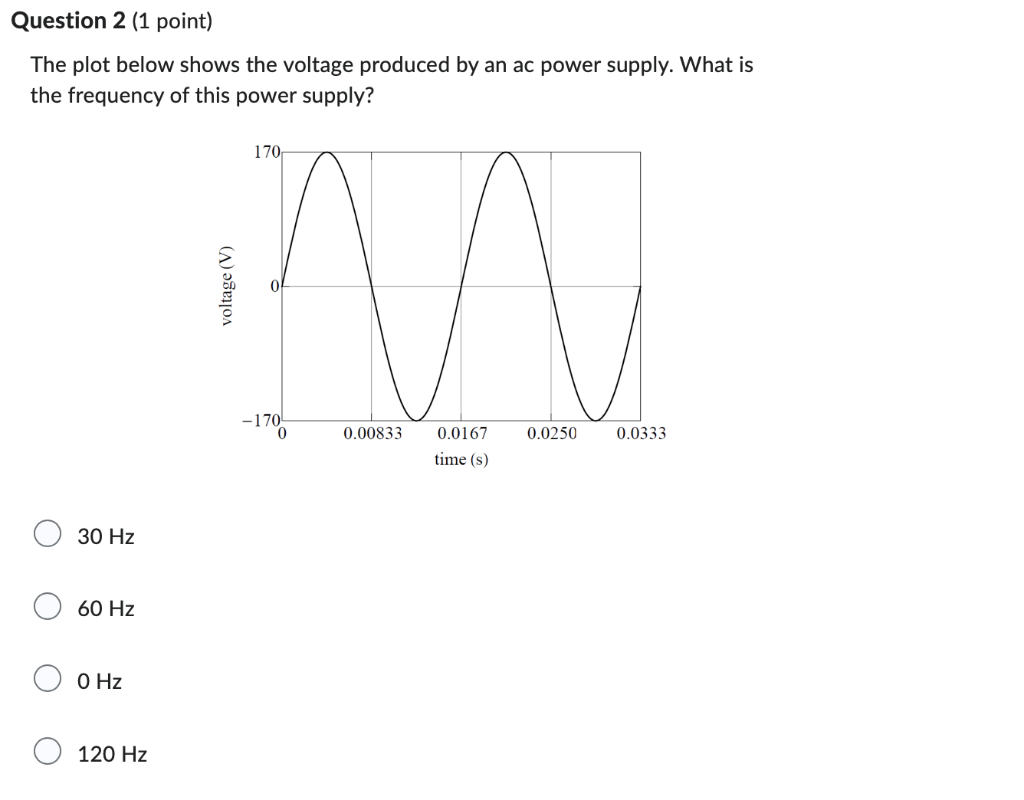

Question 2 (1 point) The plot below shows the voltage produced by an ac power supply. What is the frequency of this power supply? 30 Hz 60 Hz 0 Hz 120 Hz voltage (V) 170 AN -170 0 0.00833 0.0167 time (s) 0.0250 0.0333 Question 7 (1 point) What is the peak-to-peak voltage of the trace below? 6V 2V 2ms 3V RIGOL T'D CHI 1.99U f1-40.0mU Time 5.000ms T+0.0000s
