R1 R2 R3 M R4 R5 M In the following circuit, R1-10 Ohm, R2-4* 1.9 Ohm, R3-4* 1.9 Ohm, R4-2* 1.9 Ohm, R5=10 Ohm and E= 10

[answerhappygod]

R1 R2 R3 M R4 R5 M In The Following Circuit R1 10 Ohm R2 4 1 9 Ohm R3 4 1 9 Ohm R4 2 1 9 Ohm R5 10 Ohm And E 10 1 (22.96 KiB) Viewed 53 times

R1 R2 R3 M R4 R5 M In The Following Circuit R1 10 Ohm R2 4 1 9 Ohm R3 4 1 9 Ohm R4 2 1 9 Ohm R5 10 Ohm And E 10 2 (23.69 KiB) Viewed 53 times

R1 R2 R3 M R4 R5 M In The Following Circuit R1 10 Ohm R2 4 1 9 Ohm R3 4 1 9 Ohm R4 2 1 9 Ohm R5 10 Ohm And E 10 3 (19.6 KiB) Viewed 53 times

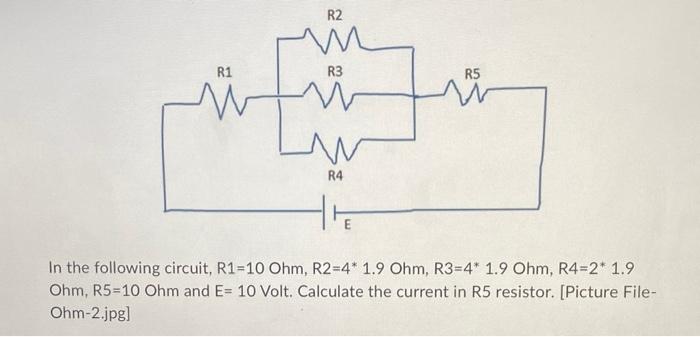

R1 R2 R3 M R4 R5 M In the following circuit, R1-10 Ohm, R2-4* 1.9 Ohm, R3-4* 1.9 Ohm, R4-2* 1.9 Ohm, R5=10 Ohm and E= 10 Volt. Calculate the current in R5 resistor. [Picture File- Ohm-2.jpg]

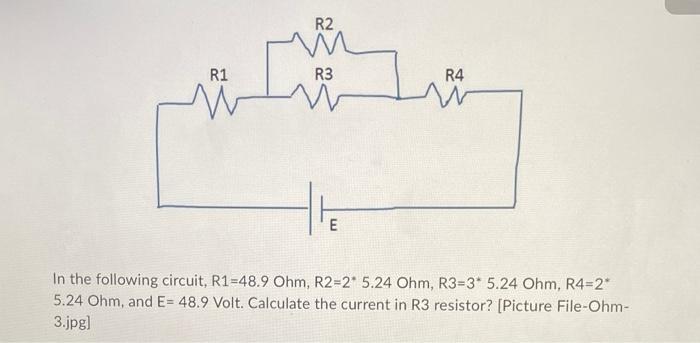

R1 R2 R3 E R4 M In the following circuit, R1=48.9 Ohm, R2-2* 5.24 Ohm, R3-3* 5.24 Ohm, R4=2* 5.24 Ohm, and E= 48.9 Volt. Calculate the current in R3 resistor? [Picture File-Ohm- 3.jpg]

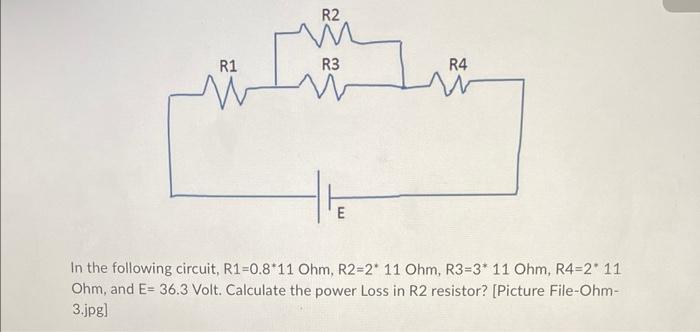

R1 R2 R3 E R4 m In the following circuit, R1=0.8*11 Ohm, R2-2* 11 Ohm, R3-3* 11 Ohm, R4=2* 11 Ohm, and E= 36.3 Volt. Calculate the power Loss in R2 resistor? [Picture File-Ohm- 3.jpg]
