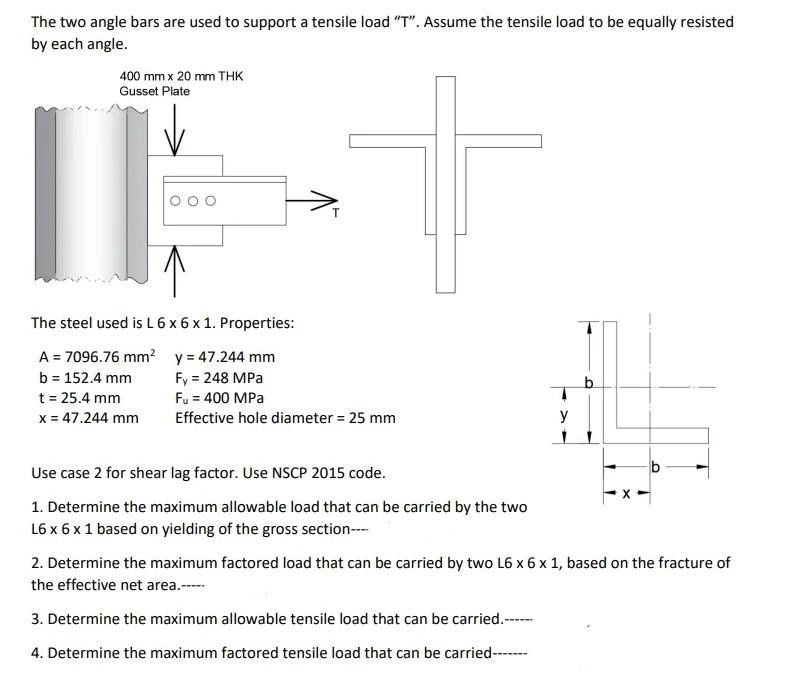

The two angle bars are used to support a tensile load "T". Assume the tensile load to be equally resisted by each angle. 400 mm x 20 mm THK Gusset Plate The steel used is L 6 x 6 x 1. Properties: A = 7096.76 mm² y = 47.244 mm b = 152.4 mm Fy = 248 MPa t = 25.4 mm Fu = 400 MPa x = 47.244 mm Effective hole diameter = 25 mm b . у b Use case 2 for shear lag factor. Use NSCP 2015 code. 1. Determine the maximum allowable load that can be carried by the two L6x6x1 based on yielding of the gross section--- 2. Determine the maximum factored load that can be carried by two L6 x 6 x 1, based on the fracture of the effective net area.----- 3. Determine the maximum allowable tensile load that can be carried.----- 4. Determine the maximum factored tensile load that can be carried-
