At t=0, the instantaneous position of two pulses moving along a taut string with a speed v= 22.6 cm/s are as shown in th

[answerhappygod]

At T 0 The Instantaneous Position Of Two Pulses Moving Along A Taut String With A Speed V 22 6 Cm S Are As Shown In Th 1 (36.85 KiB) Viewed 9 times

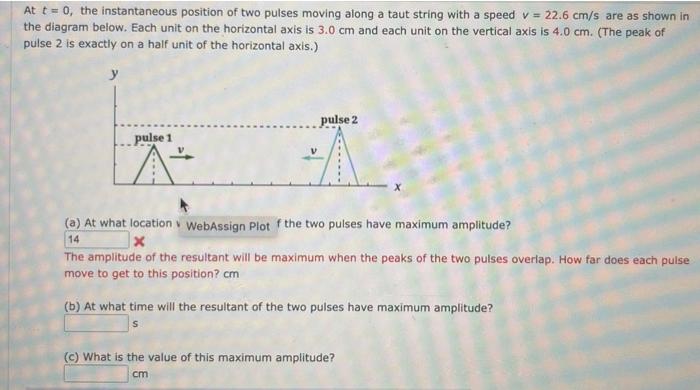

At t=0, the instantaneous position of two pulses moving along a taut string with a speed v= 22.6 cm/s are as shown in the diagram below. Each unit on the horizontal axis is 3.0 cm and each unit on the vertical axis is 4.0 cm. (The peak of pulse 2 is exactly on a half unit of the horizontal axis.) pulse 1 A+ pulse 2 (a) At what location WebAssign Plot f the two pulses have maximum amplitude? 14 x The amplitude of the resultant will be maximum when the peaks of the two pulses overlap. How far does each pulse move to get to this position? cm (b) At what time will the resultant of the two pulses have maximum amplitude? (c) What is the value of this maximum amplitude? cm
