10. A C-D nozzle with a throat area of 2 in^2 is attached to a high pressure tank of air in which the pressure is 20 psi
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
10. A C-D nozzle with a throat area of 2 in^2 is attached to a high pressure tank of air in which the pressure is 20 psi

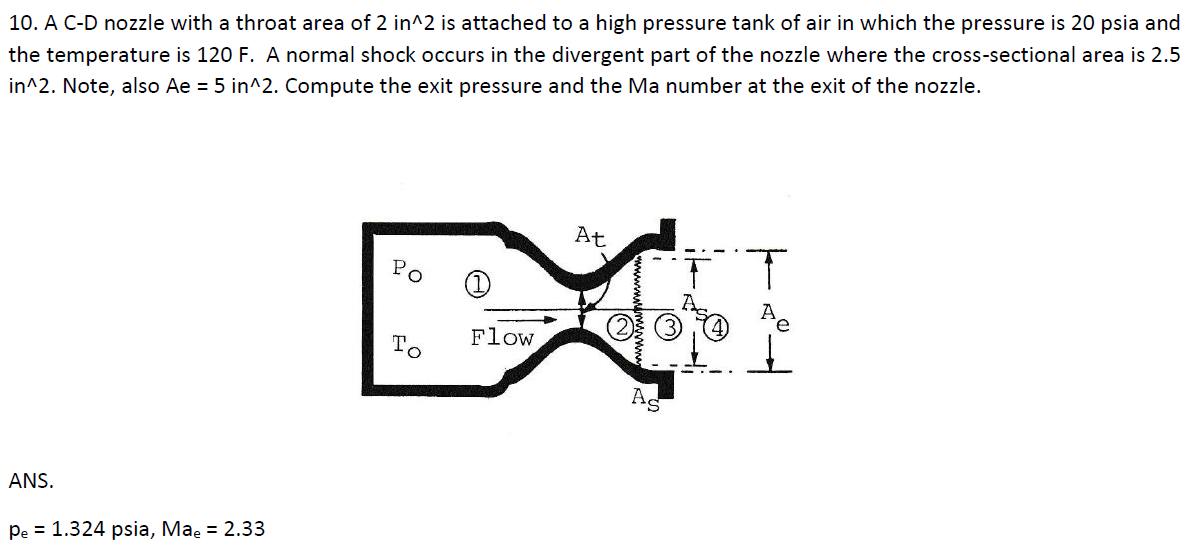

10. A C-D nozzle with a throat area of 2 in^2 is attached to a high pressure tank of air in which the pressure is 20 psia and the temperature is 120 F. A normal shock occurs in the divergent part of the nozzle where the cross-sectional area is 2.5 in^2. Note, also Ae = 5 in^2. Compute the exit pressure and the Ma number at the exit of the nozzle. ANS. Pe = 1.324 psia, Mae = 2.33 Po To Flow At As T
