Q1(1). The state of stress at a point in a member is shown on the element, with o 25 MPa, σy = 60 MPa, and Txy = 55 MPa.

[answerhappygod]

1 (41.1 KiB) Viewed 13 times

I need answer ASAP!!!
You might have seen a similar problem already on answers. DO NOTcopy it thinking it is right as it contains different values anddimensions.
ONLY USE Equlbrium Method!!
Also, I need final answer in MPa!!!

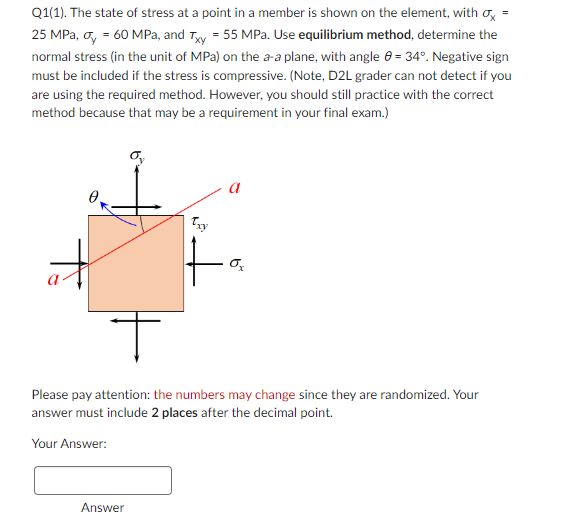

Q1(1). The state of stress at a point in a member is shown on the element, with o 25 MPa, σy = 60 MPa, and Txy = 55 MPa. Use equilibrium method, determine the normal stress (in the unit of MPa) on the a-a plane, with angle 8 = 34°. Negative sign must be included if the stress is compressive. (Note, D2L grader can not detect if you are using the required method. However, you should still practice with the correct method because that may be a requirement in your final exam.) TE ox + Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer =
