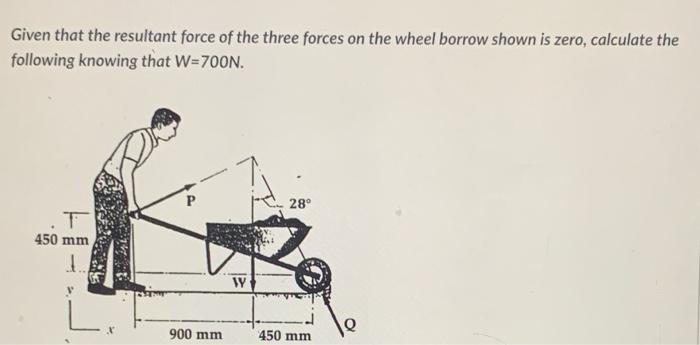

Given that the resultant force of the three forces on the wheel borrow shown is zero, calculate the following knowing that W=700N. T 450 mm 1. 900 mm W 28° 450 mm

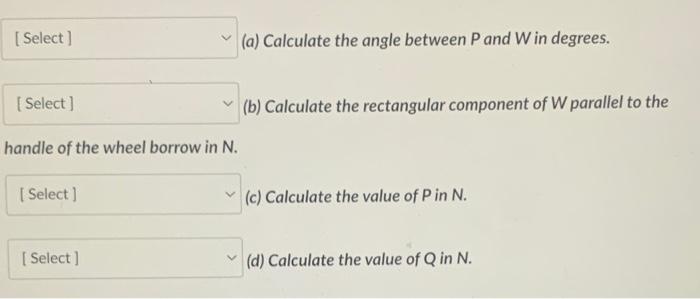

[Select] [Select] handle of the wheel borrow in N. [Select] [ Select] (a) Calculate the angle between P and W in degrees. (b) Calculate the rectangular component of W parallel to the (c) Calculate the value of P in N. (d) Calculate the value of Q in N.
